1
Tavor T.A.R. 21 Standard Version
Tavor, the new Israeli assault rifle is lightweight, compact and ergonomically designed to become an “organic” part of the warfighter. It has already been chosen to arm the Israeli (IDF) and Indian elite troops, and is aggressively marketed worldwide, to become a weapon of choice for future infantry combat suits.
The name “T.A.R. 21” stands for “Tavor Assault Rifle 21st Century”.
•Caliber: 5.56 mm
•Cartridge: 5.56 mm NATO M193/M855 (SS109)
•NET Weight: 3.27 kg (T.A.R.) / 3.18 kg (C.T.A.R.) / 3.67 kg (S.T.A.R.)
•Effective range: 600 m
•In service: 2001 – present
2
SA 80
SA80 (Small Arms for 1980s) is the designation for a revolutionary family of assault weapons. On its introduction, the L85 Individual Weapon (IW) proved so accurate that the Army marksmanship tests had to be redesigned. The British Army uses the L85 Individual Weapon that replaced the rifle and sub-machine gun, and the L86 Light Support Weapon (LSW) that produces higher volumes of fire and is effective at longer ranges. An infantry section consists of two four-man fire teams armed with SA80s: three IWs and one LSW.
The L85 (SA80) is a gas operated, magazine fed, selective fire rifle of bullpup layout. The receiver of the L85 is made from stamped sheet steel, reinforced with welded and riveted machined steel inserts. The gas operated action has a short stroke gas piston, located above the barrel. The gas piston has its own return spring. Gas system has a three-positions gas regulator, one position for a normal firing, second for a firing in adverse conditions and the third for launching the rifle grenades (gas port is shut off). The machined bolt carrier rides inside the receiver on the two parallel steel guide rods, with the single return spring placed above and between the guide rods. The typical rotating bolt has 7 lugs that locks into the steel insert in the receiver, just behind the barrel breech. The charging handle is attached to the right side of the bolt carrier, and prior to A2 upgrade caused some problems by reflecting the ejected cases back into the action, thus causing stoppages. In the L85A2 configuration the charging handle was redesigned to avoid such problems. The charging handle slot is covered by the spring-loaded dust cover. The bolt and its extractor claw also were upgraded in the L85A2, to achieve more reliable extraction of the spent cases.
•Caliber: .223 Rem / 5.56 mm
•Cartridge: 5.56×45 mm NATO
•Weight: 4.7 kg empty / 4.98 kg (with loaded magazine and optical sight)
•Effective range: 400 m
•In service: 1985 – present
3
M16A1 M16A2
Caliber 5.56x45mm (.223 Remington), M193 5.56x45mm NATO / M855
Action gas operated, rotating bolt
Overall length 986 mm 1006 mm
Barrel length 508 mm 508 mm
Weight, empty / loaded w. 30 rounds 2.89 kg / 3.6 kg 3.77 kg / 4.47 kg
Magazine capacity 20 or 30 rounds standard
Rate of fire, cyclic 650 - 750 rounds per minute 800 rounds per minute
Muzzle velocity 945 m/s 975 m/s
Maximum effective range 460 meters 550 meters
The M16 is still a general-issue rifle with the US Armed forces. It is also widely used by the US Law Enforcement agencies, either in military form (for example, the LAPD had some M16s, retired from Army), or in "civilian" semi-automatic only form. The AR-15 style rifles are made in the USA by at least dozen large companies, such as Armalite, Bushmaster, Colt, FN Manufacturing, Hesse, Les Baer, Olympic, Wilson Combat, and by number of smaller companies, many of which do assembly their rifles from components made by some other major manufacturers. M16-type rifles also manufactured outside of the USA, most notably in the Canada, by Diemaco Co. China also makes some AR-15 type rifles at NORINCO state factories. M16 rifles are used by many foreign military groups, most notably the British SAS, who preferred the M16 over the infamous L85A1 rifle, and by many others.
At the present time almost all initial flaws of the M16 are bugged out, and it is considered among the best assault rifles in the world. While its reliability in the harsh conditions cannot match reliability of its main rival, the Kalashnikov AK-47 and AK-74, it is still a quite reliable rifle, especially when well maintained. It is also comfortable to fire and quite accurate.
4
AK-47
Caliber 7.62x39 mm
Action: Gas operated, rotating bolt with 2 lugs
Overall length: 870 mm
Barrel length: 415 mm
Weight, with empty magazine: AK 4,3 kg; AKM 3,14 kg
Magazine capacity 30 rounds (40 rounds box magazines and 75 rounds drums from RPK also may be used)
Cyclic rate of fire 600 rounds per minute
The Kalashnikov assault rifle, also known to the West as the AK-47 (Avtomat Kalashnikova - 47, Kalashnikov automatic rifle, model of 1947), and its derivatives, also known under the common name of AK, is the most prolific small arm of the 2nd half of the XX century. It had been and still is (in more or less modified form) manufactured in dozens of countries, and used in hundreds of countries and conflicts since its introduction. The total number of the AK-type rifles made worldwide during the last 60 years is estimated at 90+ millions. This is a true legendary weapon, known for its extreme ruggedness, simplicity of operation and maintenance, and unsurpassed reliability even in worst conditions possible. It is used not only as a military weapon, but also as a platform for numerous sporting civilian rifles and shotguns (see Saiga semiautomatic shotguns, for example). The AK is an amalgam of previously known features and solutions, combined in the most effective way. The effectiveness, however, depends on the criteria used to measure it, and the key criteria for any and every Soviet and Russian military arm are: Reliability, Simplicity of operation and maintenance, Suitability for mass production. There never was any significant demand for good ergonomics or superb accuracy, though.
5
AK-74 AKS-74 AK-74M
Caliber: 5.45x39 mm
Action Gas operated, rotating bolt with 2 lugs
Weight, empty 3.07 kg 2.97 kg 3.4 kg
Length: 940 mm 940 / 700 mm 942 / 704 mm
Barrel length 415 mm
Rate of fire 600 - 650 rounds per minute
Magazine capacity 30 rounds standard
idea of the reduced caliber ammunition for military shoulder arms was played with for a very long time. Each time the technology leaped forward, the standard calibers were reduced - from the 0.45 - 0.50 inch (11.4 - 12.7mm) of the mid-1800 to the .30 of the mid-1900s. The idea of further reduction of the caliber down to 6.5 - 5.6 mm (.240 - .220 inch) was also considered in many countries since the beginning of the XX century, but it was not until the 1960s when the idea of the low impulse, small-caliber, high velocity round came up to something real. When US Army adopted the M16 rifle in the mid-1960s, everybody else eyed Americans with interest. And as soon as the idea of small caliber rifle was found worthwhile, the total rearming began.
Soviet army started the development of its own small-caliber ammunition in the early 1960s. After some years of development, a new round was created. This round featured a bottlenecked, tapered case 39mm long made of steel, loaded with slim, relatively long bullet with nominal caliber of 5.45mm (actual bullet diameter is 5.62 mm). The bullet featured a combined steel and lead core with the hollow nose, muzzle velocity from the 415mm barrel was about 900 m/s. It must be noted that the new 5.45mm ammunition featured a new case of smaller diameter (compared to 7.62x39 M43 cartridges); this allowed for lighter round and also solved the problem of loading of the 7.62mm ammunition into the 5.45mm weapon by mistake (which otherwwise might result in a catastrophical failure of the weapon).
As soon as the new ammunition was available and accepted by the Soviet Military, it was decided to develop a new family of small arms around this cartridge, and an official requirements for new family of small arms were issued to all development organizations in 1966. Trials of new weapons commenced in 1968, and it must be note that most rifles, submitted for trials, were of highly advanced designs, as the main goal of the new weapon was to significantly improve hits probability (compared to 7.62mm AKM rifles). Most weapons were build using so called "balanced action", in which additional mass is added to the action to counter-recoil synchronously with the bolt group, to minimize its effect on the gun stability. About the only weapon of the more or less conventional design was the entry by Kalashnikov team - this was more or less the old AKM rifle, adapted for new 5.45mm ammunition.
6
INSAS
Caliber: 5.56x45 mm NATO
Action: Gas operated, rotating bolt
Overall length: 945 mm with fixed butt; 960 / 750 mm with folding butt
Barrel length: 464 mm
Weight: 3.2 kg empty
Rate of fire: 650 rounds per minute
Magazine capacity: 20 or 30 rounds
Since late 1950s, Indian armed forces were equipped with 7.62mm NATO L1A1 slef-loading rifles, which were licensed copies of the famous Belgian FN FAL rifle. As the 7.62mm self-loading rifles started to become obsolete by the 1980s, India began to develop the INSAS (Indian National Small Arms System), which incorporated features from several popular foreign designs. The INSAS system was originally planned to have three components - a standard rifle, a carbine, and a squad automatic rifle (LMG), all chambered for 5.56 x 45 NATO ammunition. In 1997 the rifle and LMG were ready for mass production, and in 1998 the first units were observed on an Independence Day parade armed with INSAS rifles. The mass introduction of the INSAS rifle was initially delayed by the lack of the domestically made 5.56 mm ammunition and India accordingly bought significant stocks of ammunition from the Israeli IMI company. At the present time at least 300,000 INSAS rifles are in service with the Indian army; some of these have seen action in Indo-Pakistani conflict. The INSAS rifles are made by the Ishapore Rifle Factory.
The INSAS rifle is broadly based on the famous Kalashnikov AK-47 action, but with many modifications. The basic gas-operated action with long stroke gas piston and a rotating bolt, as well as the stamped steel receiver, are generally the same as in modern Kalashnikov rifles. However, the gas system is fitted with a manual gas regulator, similar in design to that found on FN FAL rifles, as well as a gas cutoff. The charging handle has been moved from the bolt carrier to the left side of the forearm; it is similar in position and design to German HK G3 rifle. The selector / safety switch is located at the left side of the receiver, above the pistol grip, and allows for single shots and three round bursts. The rifle is fitted with a side-folding carrying handle, and either a solid or side-folding metal buttstock. Furniture can be made from wood or polymer. Standard magazines are made from semi-translucent polymer and contain 20 rounds. Longer 30-round magazines of similar design are available for the INSAS LMG but can also be used in the rifle. The sights consist of a hooded front, mounted on top of the gas block, and a diopter rear, mounted on the receiver cover. The flash hider is shaped to accept NATO-standard rifle grenades. INSAS rifles can be fitted with AKM-style multipurpose knife-bayonets.
7
QBZ-97 / Type 97
5.56x45mm QBZ-97 / Type 97 assault rifle; note different magazine port, designed to accept STANAG / M16-type magazines
Data for QBZ-95 (QBZ-97 in parenthesizes, where differs from QBZ-95)
Caliber: 5.8x42 mm (5.56x45 mm NATO)
Action: Gas operated, rotating bolt
Overall length: 760 mm
Barrel length: 520 mm
Weight: 3.4 kg unloaded
Rate of fire: ~ 650 rounds per minute
Magazine capacity: 30 rounds
In the late 1980s Chinese designers developed a 5.8 x 42 cartridge, apparently designated DBP87, which is claimed to be superior to both the 5.56 mm NATO and the 5.54 mm Soviet. This cartridge develops a muzzle velocity of 930 metres per second from a standard barrel, with a bullet weighing 4.26 gram.
As soon as the ammunition was ready, the PLA began to develop an entirely new and much more modern family of small arms based on the same action. This family, known as QBZ-95 ('Qing Buqiang Zu' = Light Rifles family, 1995), was first displayed outside the PLA in 1997, when China took over Hong Kong; it was observed that the Chinese guards were armed with a new, modern looking bullpup rifle. In fact it is one of an entirely new family of weapons, all designed around the same action and bullpup layout, which include the assault rifle, a shorter carbine, a light support weapon (with a bipod, a heavier barrel and large capacity magazine), and a sniper rifle. While being quite similar inside, these guns have different body shapes and cannot be converted from one configuration to another. The QBZ-95 line of weapons is now spreading throughout the PLA, commencing with elite units.
The QBZ-95 is a gas operated, magazine fed, automatic weapon with a bullpup layout. It has a short stroke gas piston and a rotating bolt. The charging handle is located at the top of the receiver, under the carrying handle. The housing is made from polymer, with an integral carrying handle, which holds the rear sight base, and has mounting points for optical or night vision scopes. The ejection port is made only at the right side of the weapon, so it cannot be fired from the left shoulder. Standard sights are of the open type, graduated from 100 to 500 metres. The front part of the barrel in the standard version is left unobstructed, so the QBZ-95 rifle can be used to launch rifle grenades. It also can be fitted with an underbarrel grenade launcher or with a knife bayonet. A compact carbine version, sometimes referred to as the CAR-95, cannot use either a grenade launcher or a bayonet, because of the much shortened barrel. Fire controls of QBZ-95 rifle consist of a trigger and a safety/selector switch, located (quite inconveniently) at the rear left of the receiver, behind the magazine housing. QBZ-95 can fire single shots or bursts.
The export version, QBZ-97, which is chambered for popular 5.56 x 45 NATO ammunition, is internally similar to QBZ-95, but has a different, much deeper magazine housing, which accepts a NATO-standard (M16-type) magazines.
8
FN2000
Caliber: 5.56x45 mm NATO
Action: Gas operated, rotating bolt
Overall length: 694 mm
Barrel length: 400 mm
Weight: 3.6 kg empty, in standart configuration; 4.6 kg with 40mm grenade launcher
Magazine capacity: 30 rounds (any NATO / STANAG type magazines)
During the late 1980s and early 1990s famous Belgian company FN Herstal began the search for its next entry into the assault rifle world. The aim this time was to produce a modern, modular weapon, and this ultimately resulted in the FN F2000 rifle, which was first displayed in public in 2001. The F2000 offers all of the most popular features of the modern assault rifle, such as a compact bullpup layout, completely ambidextrous handling, and a modular design with plenty of options and add-ons already available, which allow the rifle to be “tailored” for any particular mission or tactical situation. For example, for peacekeeping operations F2000 could be fitted with less-lethal M303 underbarrel module, which fires tear gas or marker projectiles using pre-compressed air. On the other hand, the F2000 could be fitted with various 40 mm FN EGLM grenade launchers and a proprietary computerized fire control system, instead of the standard low-magnification optical sights. So far FN F2000 rifle found only few buyers, including Armed forces of Slovenia and Belgian Special operations forces. Nevertheless, it is one of most promising assault rifles on the market.
Quite recently FN also introduced a civilian version of F2000, known as FS2000. It has a somewhat longer barrel and is limited to semi-automatic fire. Otherwise it is the same excellent weapon, with great ergonomics and 100% ambidexterity.
The F2000 rifle is a gas operated, rotating bolt, selective-fire weapon, featuring a polymer stock with a bull-pup layout. It utilizes a short-stroke gas piston and a 7-lug rotating bolt which locks into the barrel extension. The unique feature of the F2000 rifle is its patented front ejection system: the spent cases, extracted from the chamber, travel from the rear part of the gun to the ejection port near the muzzle via a special ejection tube and fall out of the gun at the safe distance from the shooters' face. This is achieved using a special swinging guide, which enters the way of the closing bolt, and directs the spent case, which is held on the bolt face, to the ejection tube, while, at the same time, lower lugs of the bolt are stripping a fresh cartridge from the magazine. The cocking handle is mounted well forward on the left hand side, just above the fore grip, and it can easily be operated with the right hand when the gun is held left-handed. The selector switch is mounted at the bottom of the trigger guard. All of these features combine to make the F2000 the first genuinely ambidextrous bullpup, able to be used with equal ease by right and left handed shooters without requiring any adjustments. In its standard configuration, the F2000 is perfectly balanced around the pistol grip.
The stock has built-in standard rails on the top of the weapon (for different sights and scopes etc) and a mounting point ahead of trigger guard, where additional modules may be installed (such as grenade launchers, non-lethal modules etc). In the basic configuration, the upper rail mount is fitted with a 1.6X magnification optical sight, and the lower mounting point is covered by a removable handguard. At the current time, the F2000 rifle may be upgraded, depending on the mission, with FN's 40 mm low-velocity grenade launcher (on the lower mount, instead of the handguard), or with M303 non-lethal module; other options are handguards with built-in laser pointers or flashlights. The standard low-magnification combat scope, which has a back-up open sights on its top cover, may be replaced by any other scope on Piatiny-style mount, or with FN's proprietary computerized fire control module with laser rangefinder, for both the rifle and 40 mm grenade launcher.
9
FN SCAR-H / Mk.17

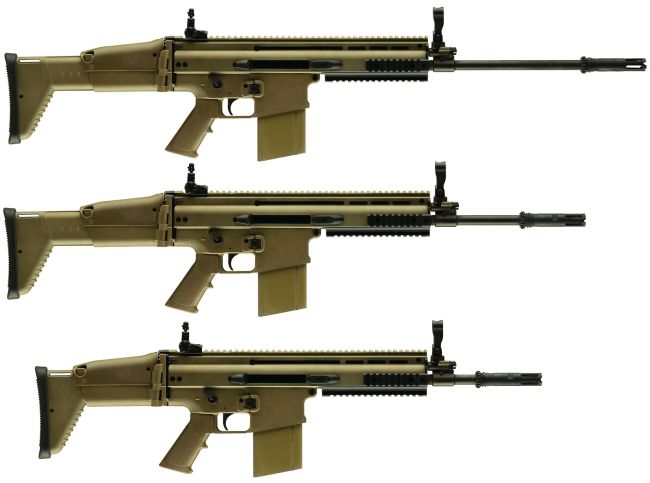

7.62mm NATO FN SCAR-H / Mk.17 rifles of current (2007/2008) production, top to bottom in Long Barrel (LB), bstandard (Std) and Close Quarter Combat (CQC) configurations
Image: FNH USA
Mk.16 SCAR-L (Light) Mk.17 SCAR-H (Heavy)
Caliber 5.56x45 NATO 7.62x51 NATO basic
7.62x39 M43 and others additionally
Overall length, standard configuration 850 mm (max) / 620 mm (min) 997 mm (max) / 770 mm (min)
Barrel length 254mm/10" (CQC), 355mm/14" (Std), 457mm/18" (LB) 330mm/13" (CQC), 406mm/16" (Std), 508mm/20" (LB)
Weight 3.5 kg empty 3.86 kg empty
Rate of fire 600 rounds per minute 600 rounds per minute
Magazine capacity 30 rounds standard 20 rounds (7.62x51 NATO)
30 rounds (7.62x39 M43)
The US Special Operations Command (US SOCOM) issued a solicitation for the procurement of SOF Combat Assault Rifles (SCAR) on October 15th, 2003. This solicitation requested a new combat rifle, specially tailored for the current and proposed future needs of the US Special Forces, which are somewhat different from latest generic US Army requirements, which are being fulfilled by the newest Heckler-Koch XM8 assault rifle. The key difference in basic requirements between XM8 and SCAR is that, while XM8 is a single-caliber weapon system, tailored for 5.56x45mm NATO ammunition, the SCAR should be available in various different calibers. Initial SOF requirements included two basic versions of SCAR system - the SCAR Light (SCAR-L), available in 5.56mm NATO, and the SCAR heavy (SCAR-H), which should be initially available in significantly more powerful 7.62x51 NATO chambering, and should be easily adaptable in the field to other chamberings. These other chamberings initially include the well-spread 7.62x39 M43 ammunition of the Soviet / Russian origins, and probably some others (like the proposed 6.8x43 Remington SPC cartridge, especially developed for US Special Forces). The key idea of SCAR rifle system is that it will provide the Special Forces operators with wide variety of options, from short-barreled 5.56mm SCAR-L CQC variation, tailored for urban close combat, and up to long range 7.62x51 SCAR-H Sniper variant, as well as 7.62x39 SCAR-H, which will accept "battlefield pickup" AK-47/AKM magazines with 7.62 M43 ammunition, available during the operations behind the enemy lines. Both SCAR-L and SCAR-H shall be initially available in three versions, Standard (S), Close Quarters Combat (CQC) and Sniper Variant (SV; now it is dubbed Long Barrel - LB). All these variants, regardless the caliber and exact configuration, will provide the operator with the same controls layout, same handling and maintenance procedures, and same optional equipment, such as sights, scopes, and other current and future attachments.
As it turned out, FN SCAR rifles are not based on any previous weapons but designed from the scratch. In all variants FN SCAR rifles feature gas operated, short stroke piston action with rotating bolt locking. Bolt system appears to be somewhat similar to that of FN Minimi / M249 SAW machine gun. This system apparently is less sensitive to fine sand, dust and any other fouling inside the receiver, than any system with M16-type multi-lug bolt and plunger-type ejector.
Mk.16 SCAR-L rifle will use improved M16-type magazines, made of steel; Mk.17 SCAR-H will use proprietary 20-round magazines in 7.62x51 NATO chambering, or standard AK-type magazines in proposed 7.62x39 M43 chambering. Current prototypes of SCAR rifles do not have bayonet mounts, and, probably, will never have one.
10
FAMAS F1 FAMAS G2
Caliber 5.56mm NATO (.223rem)
Action Delayed blowback
Overall length 757 mm
Barrel length 488 mm
Weight 3.61 kg with empty magazine 3.8 kg with empty magazine
Magazine capacity 25 rounds (proprietary) 30 rounds (STANAG)
Muzzle velocity 960 m/s 925 m/s
Rate of fire 900-1000 rounds per minute 1000-1100 rounds per minute
Effective range 300 meters 450 meters
FAMAS stands for Fusil d'Assaut de la Manufacture d'Armes de St-Etienne (Assault Rifle by St-Etienne Arms Factory - a member of the French govt. owned GIAT Industries concern). Development of this rifle began in 1967, under the leadership of the Paul Tellie, a French arms designer. This new rifle was intended to replace in service the MAS Mle.49/56 semi-automatic rifles, MAT-49 submachine guns and some MAC Mle.1929 light machine guns. First FAMAS prototype had been built in 1971. French military began to test this rifle in 1972-73, but, in the meantime, France adopted a Swiss-designed SIG SG-540 5.56mm assault rifle as an intermediate solution. FAMAS rifle was adopted by the French in 1978 and since then became a standard French Army shoulder fired small arm, known among the French soldiers as "Le Clairon" (the bulge). According to the Janes Infantry Weapons 2000, the total number of FAMAS F1 rifles built is estimated at 400 000, and the production of the F1 variant is now completed. It is still used by the French army, and was exported in small numbers to some countries like the Senegal or United Arab Emirates. Since then, the GIAT Industries developed an improved version of the F1, known as the G1. This rifle featured an enlarged trigger guard, that covered a whole hand, and a slightly improved plastic handguards. G1 was an intermediate design, and was consequently replaced by the latest production model, the FAMAS G2, which appeared circa 1994. This rifle has the G1-style enlarged trigger guard but can accept only STANAG type (M16-compatible) magazines. It was adopted and purchased by the French Navy in the 1995, with the French Army soon following the suit, and also offered for export. At the present time the slightly upgraded FAMAS G2 rifle is used as a platform for the future FELIN system (a French counterpart to the US "Land Warrior" programme), which incorporates a various electronic sights and sensors, connected to the soldier carried equipment, like the helmet mounted displays, ballistic and tactical computers etc. GIAT also now offers some variations of the basic FAMAS G2 rifle, such as "Submachine gun" with shortened receiver and barrel of 320 mm long, "Commando" with the standard receiver and the 405 mm barrel, and the "Sniper", with longer and heavier 620 mm barrel and an integral scope mount instead of the carrying handle.
The FAMAS rifles seen some action during the operation "Desert Storm" in Kuwait in 1991, as well as in some peace-keeping operations in the mid and late 1990s, and proved itself as a reliable and trustworthy weapons.
11
G36 G36K G36C
Caliber 5.56x45mm (.223 Rem)
Length (buttstock open / folded) 998 / 758 mm 860 / 615 mm 720 / 500 mm
Barrel length 480 mm 320 mm 228 mm
Weight empty 3.6 kg (3.3 kg G36E) 3.3 kg (3.0 kg G36KE) 2.8 kg
Magazine capacity 30 rounds standard
Rate of fire 750 rounds per minute
The Heckler und Koch G-36 assault rifle had been born as HK-50 project in early 1990s. The reason behind that project was that the Bundeswehr (the German army), after the cancellation of the G11 and G41 projects, was left with outdated G3 rifle and no modern rifle, compatible with the current NATO standards at hands. Therefore the famous company Heckler & Koch was set to develop a new assault rifle for both German army and the export. The new 5.56mm assault rifle has been adopted by the Bundeswehr in the 1995, and in the 1999 the Spain adopted its slightly different, export version, G36E as its standard infantry rifle. The G36 also found its way into the hands of various law enforcement agencies worldwide, including British police and some US police departments. So far I've heard very few complaints about this rifle, and a lot of good revives and opinions. In fact, the only complaints about G36 that I know are the overheating of the handguards during the sustained fire, and the loose of zero of built in scope on some G36KE rifles, used by US police. Some German soldiers also complained about position of dual optical sights and those sights being easily fogged in bad weather (rain or snow). Otherwise it is a good rifle, accurate, reliable, simple in operations and maintenance, and available in a wide variety of versions - from the short-barreled Commando (some even said that it's a submachine gun) G36C and up to a standard G36 rifle. The MG36 squad automatic weapon (light machine gun), which was initially designed as a heavy-barreled version of the G36, was in fact a short-lived proposition that never went into mass production.
The G36, in severely modified form, was used as a "kinetic energy" part of the now-cancelled US XM-29 OICW weapon and it also served as a base for XM8 assault rifle (also cancelled).
